Drawings
Cast-in (Pre)
Taper Top:
R1.0 30mm x 300mm high 2.4m lengths
Cast-In (Pre)
Taper Top:
R1.0 30mm x 600mm high 2.4m lengths

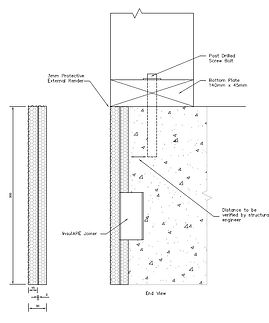

Cast-in (Pre)
Square Top
R1.0 30mm x 300mm high 2.4m lengths
Cast-in (Pre)
Square top:
R1.0 30mm x 600mm high 2.4m lengths
Cast-in (Pre)
Taper Top:
R1.0 30mm x 300mm high CORNER
Cast-In (Pre)
Taper Top:
R1.0 30mm x 600mm high CORNER
Cast-in (Pre)
H Joiners
Cast-in (Pre)
Installation Instructions
External (Post)
Bevel Top:
R1.0 30mm x 300mm high 2.4m length
External (Post)
Bevel Top:
R1.0 30mm x 600mm high 2.4m length
External (Post)
Tongue Top:
R1.0 30mm x 300mm high 2.4m length
External (Post)
Tongue Top:
R1.0 30mm x 600mm high 2.4m length
External (Post)
Wide Bevel Top:
R1.0 30mm x 300mm high 2.4m length
External (Post)
wide Bevel Top:
R1.0 30mm x 600mm high 2.4m length
External (Post)
Square Top:
R1.0 30mm x 300mm high 2.4m length, optional 15Deg top for flashing
External (Post)
Square Top:
R1.0 30mm x 600mm high 2.4m length
External (Post)
Bevel Top:
R1.0 30mm x 300mm & 600mm high Corner
External (Post)
Wide Bevel Top:
R1.0 30mm x 300mm & 600mm high Corner

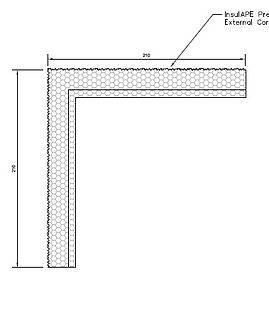

External (Post)
Tongue Top:
R1.0 30mm x 300mm & 600mm high Corner
External (Post)
Square Top:
R1.0 30mm x 300mm & 600mm high Corner
